Stator & MOSFET Reg Kit Assorted KTM (RMS900-107608)

Product image 1
1 / 12

Stator & MOSFET Reg Kit Assorted KTM (RMS900-107608)

Brand new aftermarket stator + rotor + ignition coil. Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation

  • All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

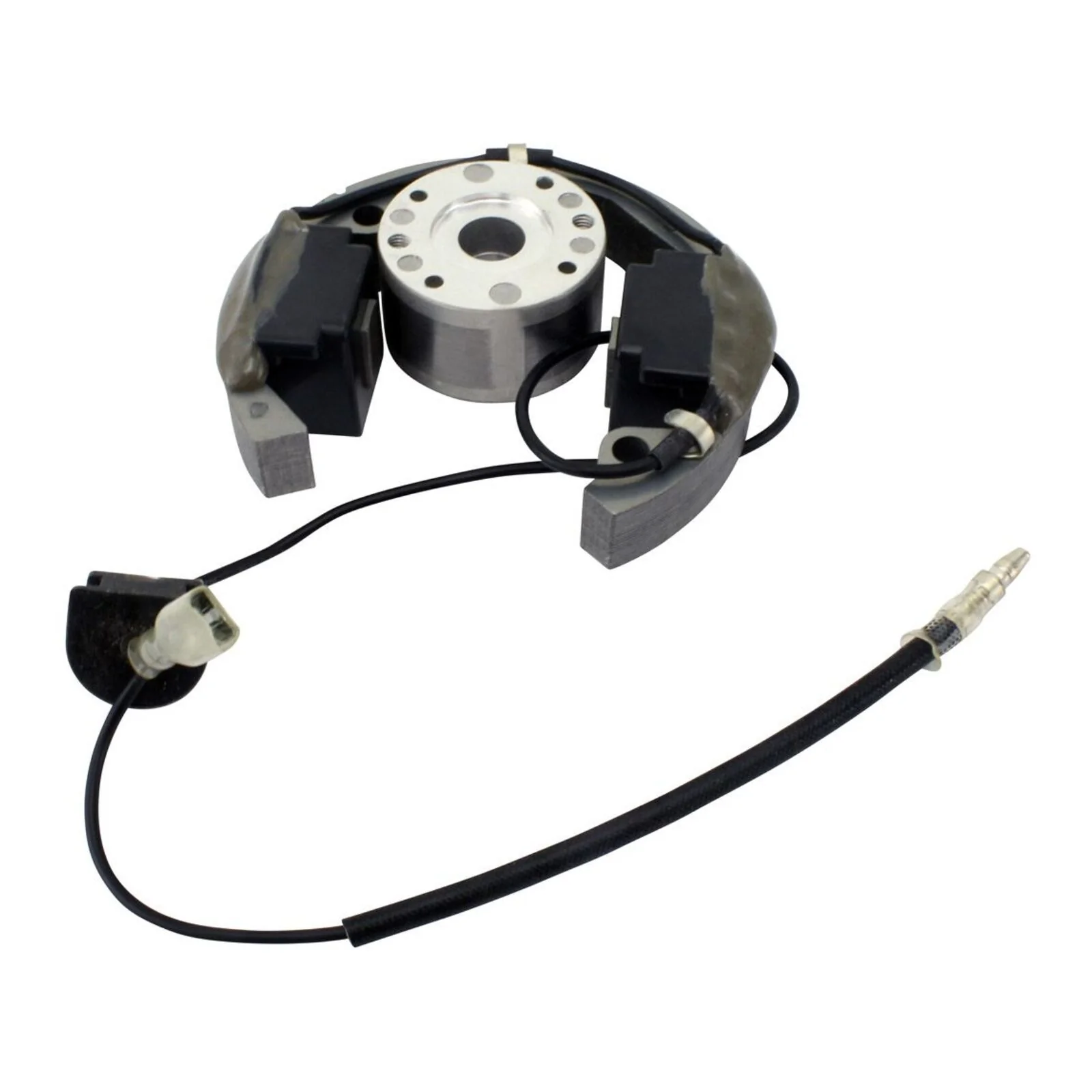

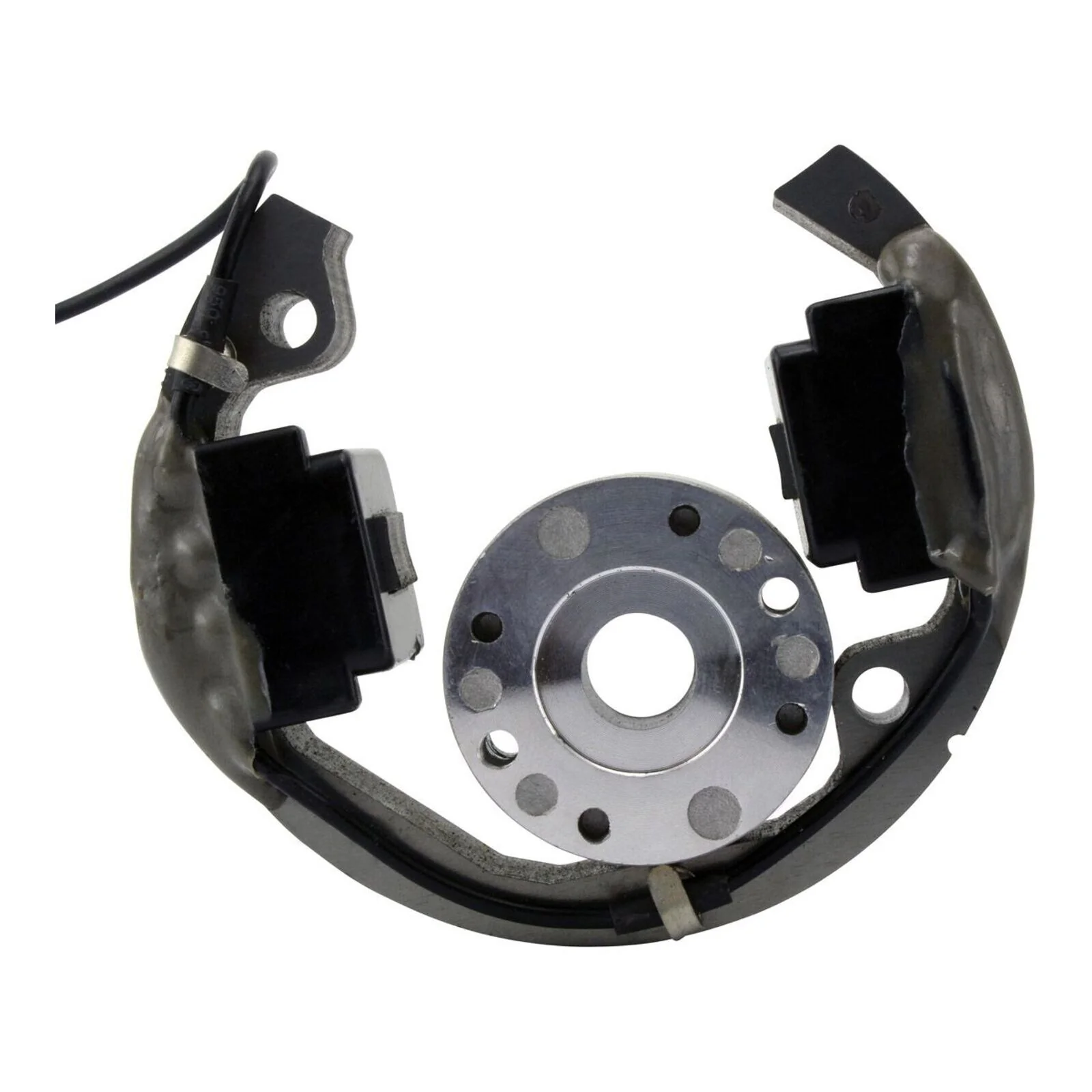

Stator :

  • Highest grade of lamination materials

  • Highest grade of copper winding, resistant to 200 degrees Celsius

  • Connector included

  • Rubber grommet included

Specifications:

Stator Dimensions:

  • Length of wires stator to grommet: 75 mm
  • Length of wires grommet to plug: 148 mm

Other specifications:

  • Number of wires: 2
  • Number of plugs: 2

Alternator:

  • Black to ground: 4.5 ohms ±20%

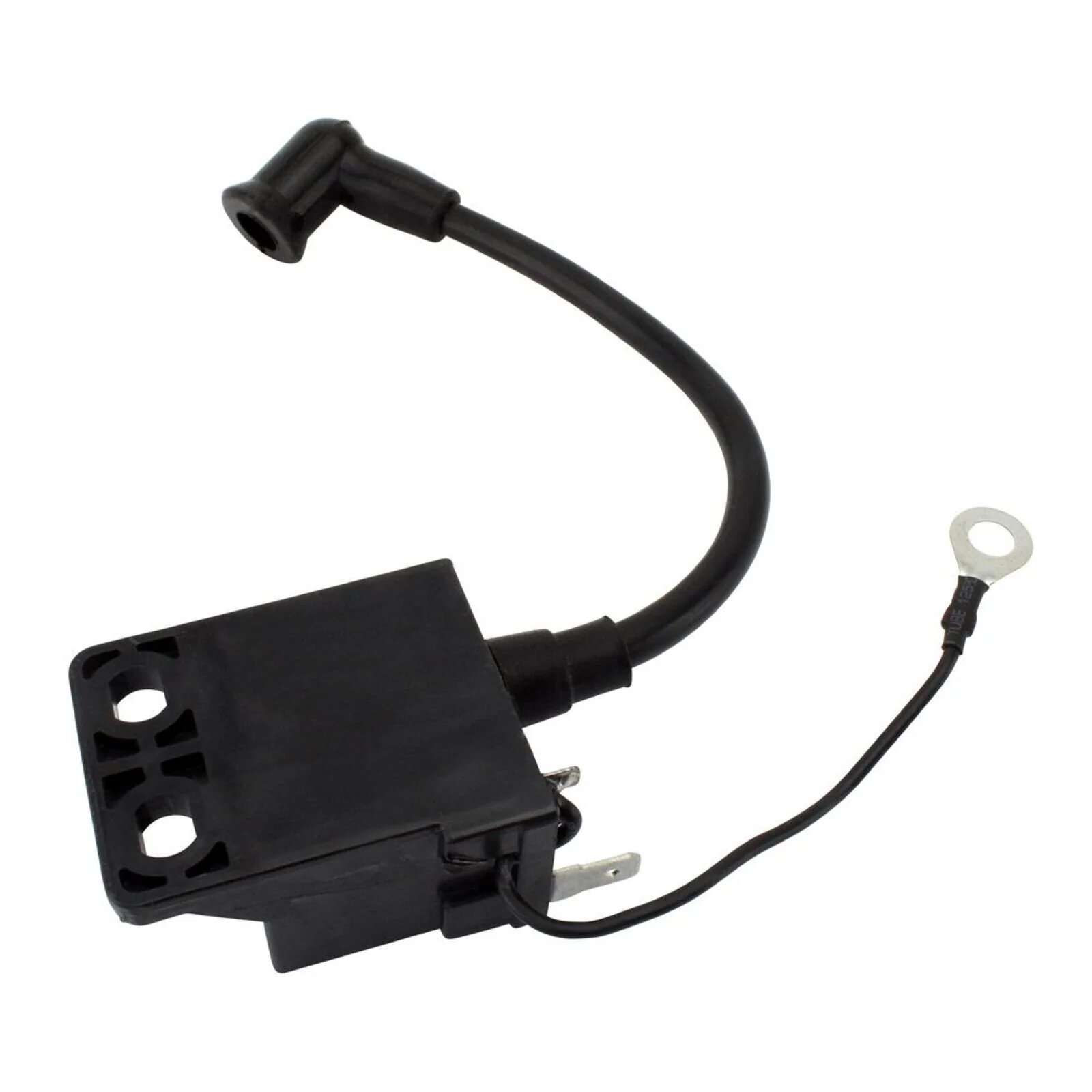

External Ignition Coil:

  • Distance between fixation holes: 20 mm
  • Wire Length: 51 mm
  • Resistance: 6.1 ohms

Rotor Dimensions:

  • Interior widest diameter: 12 mm
  • Interior narrowest diameter: 12 mm
  • Interior length: 19 mm
  • Exterior Diameter: 36 mm
  • Fixation holes centre to centre: 23 mm
$25.44

Original: $84.80

-70%
Stator & MOSFET Reg Kit Assorted KTM (RMS900-107608)—

$84.80

$25.44

Product Information

Shipping & Returns

Description

Brand new aftermarket stator + rotor + ignition coil. Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation

  • All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator :

  • Highest grade of lamination materials

  • Highest grade of copper winding, resistant to 200 degrees Celsius

  • Connector included

  • Rubber grommet included

Specifications:

Stator Dimensions:

  • Length of wires stator to grommet: 75 mm
  • Length of wires grommet to plug: 148 mm

Other specifications:

  • Number of wires: 2
  • Number of plugs: 2

Alternator:

  • Black to ground: 4.5 ohms ±20%

External Ignition Coil:

  • Distance between fixation holes: 20 mm
  • Wire Length: 51 mm
  • Resistance: 6.1 ohms

Rotor Dimensions:

  • Interior widest diameter: 12 mm
  • Interior narrowest diameter: 12 mm
  • Interior length: 19 mm
  • Exterior Diameter: 36 mm
  • Fixation holes centre to centre: 23 mm
