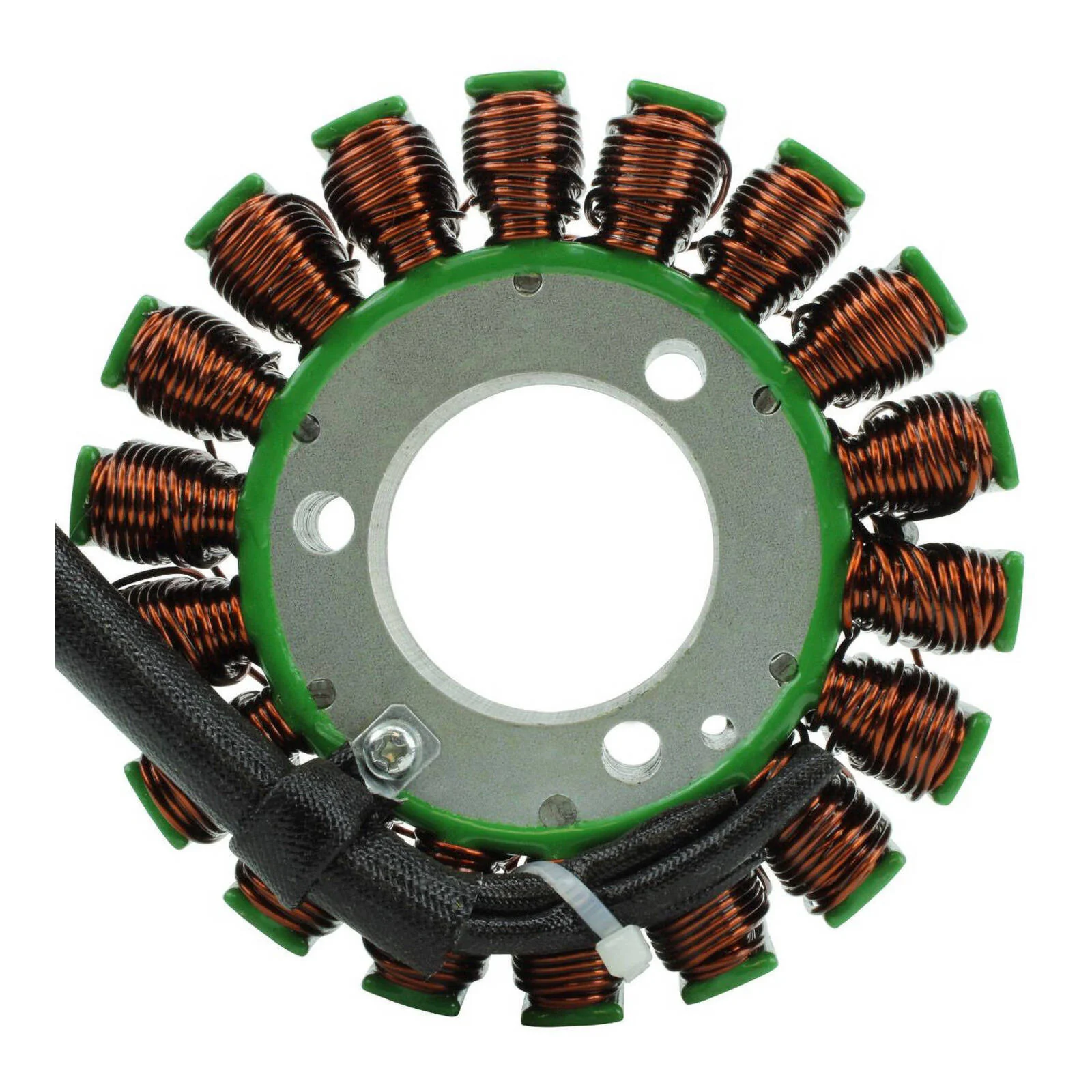

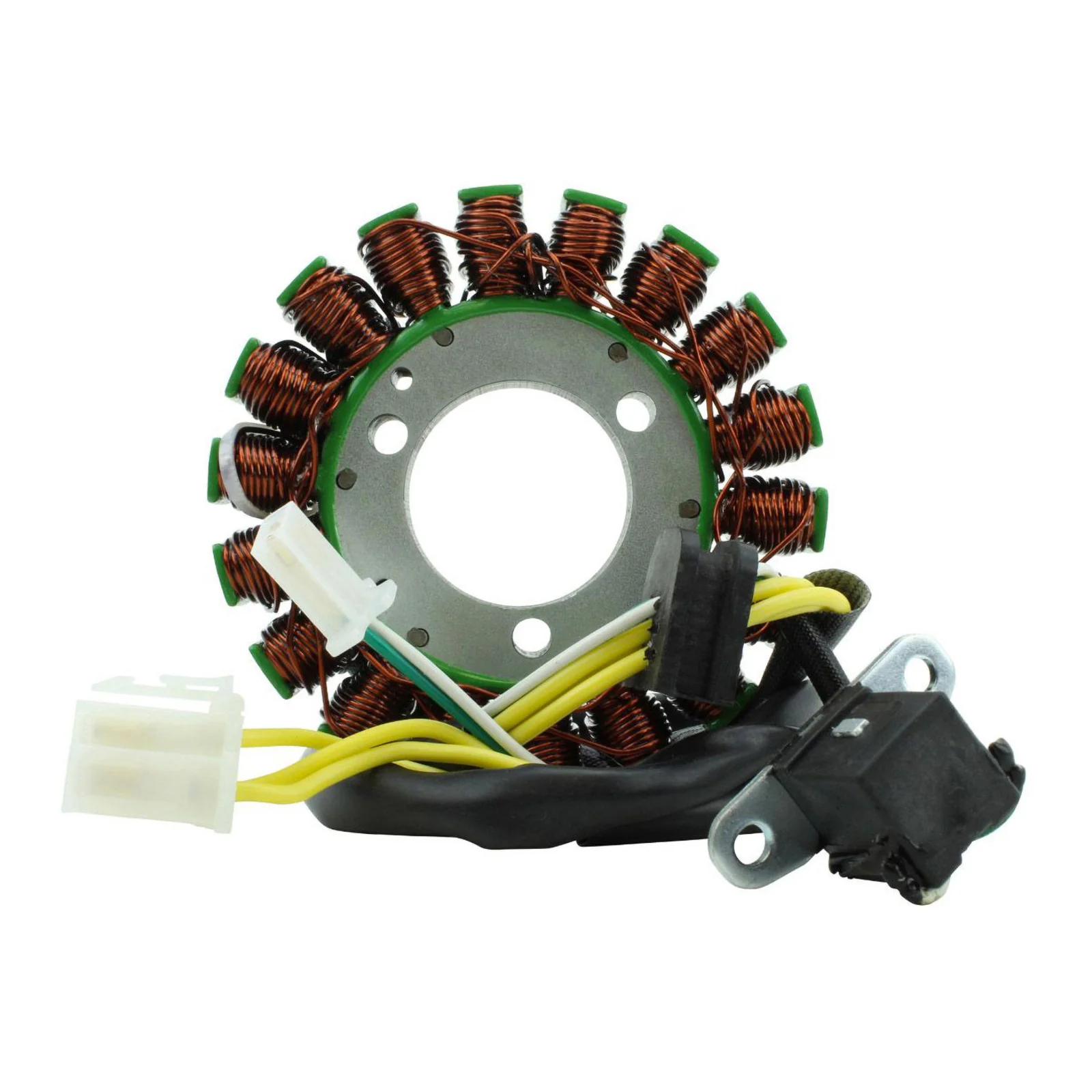

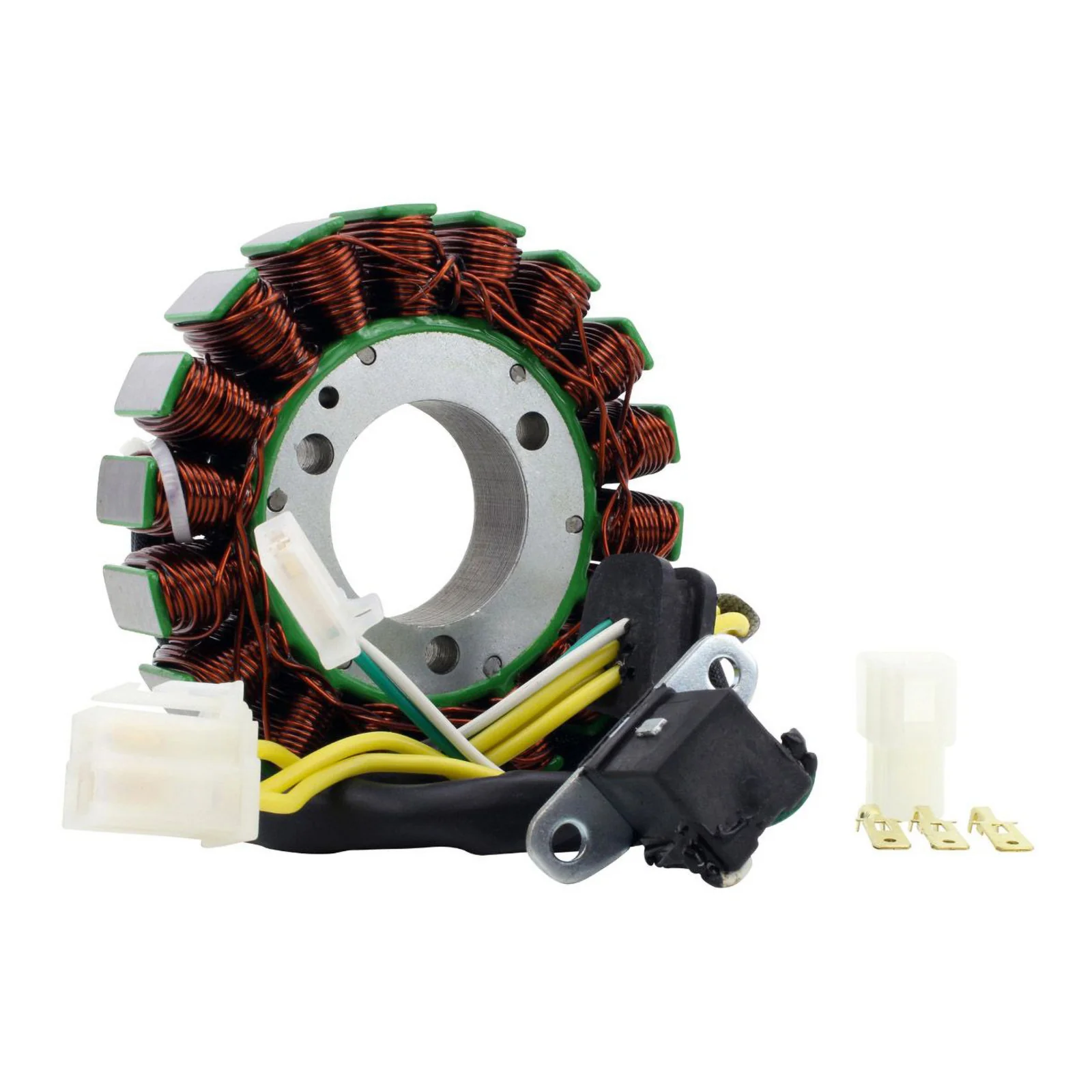

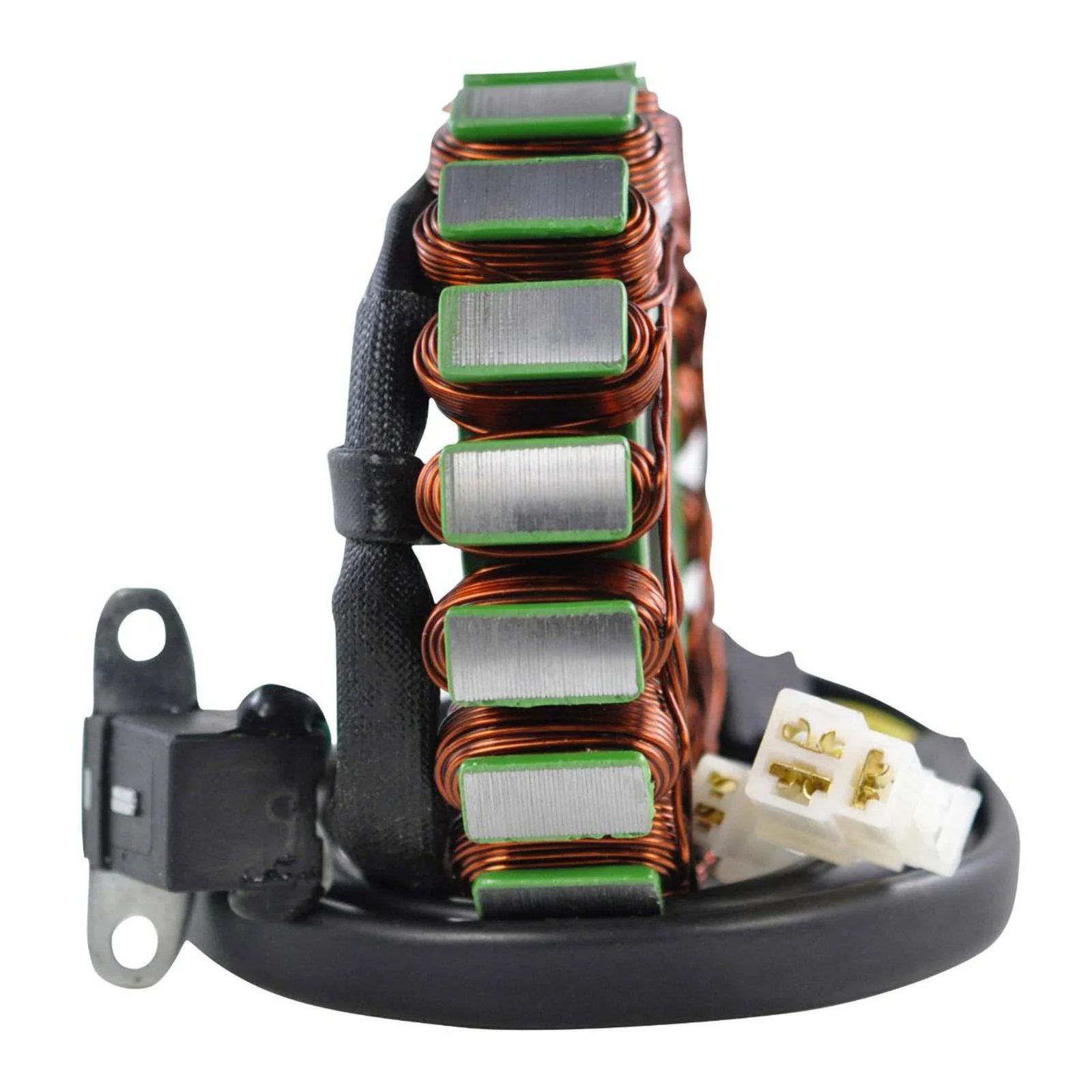

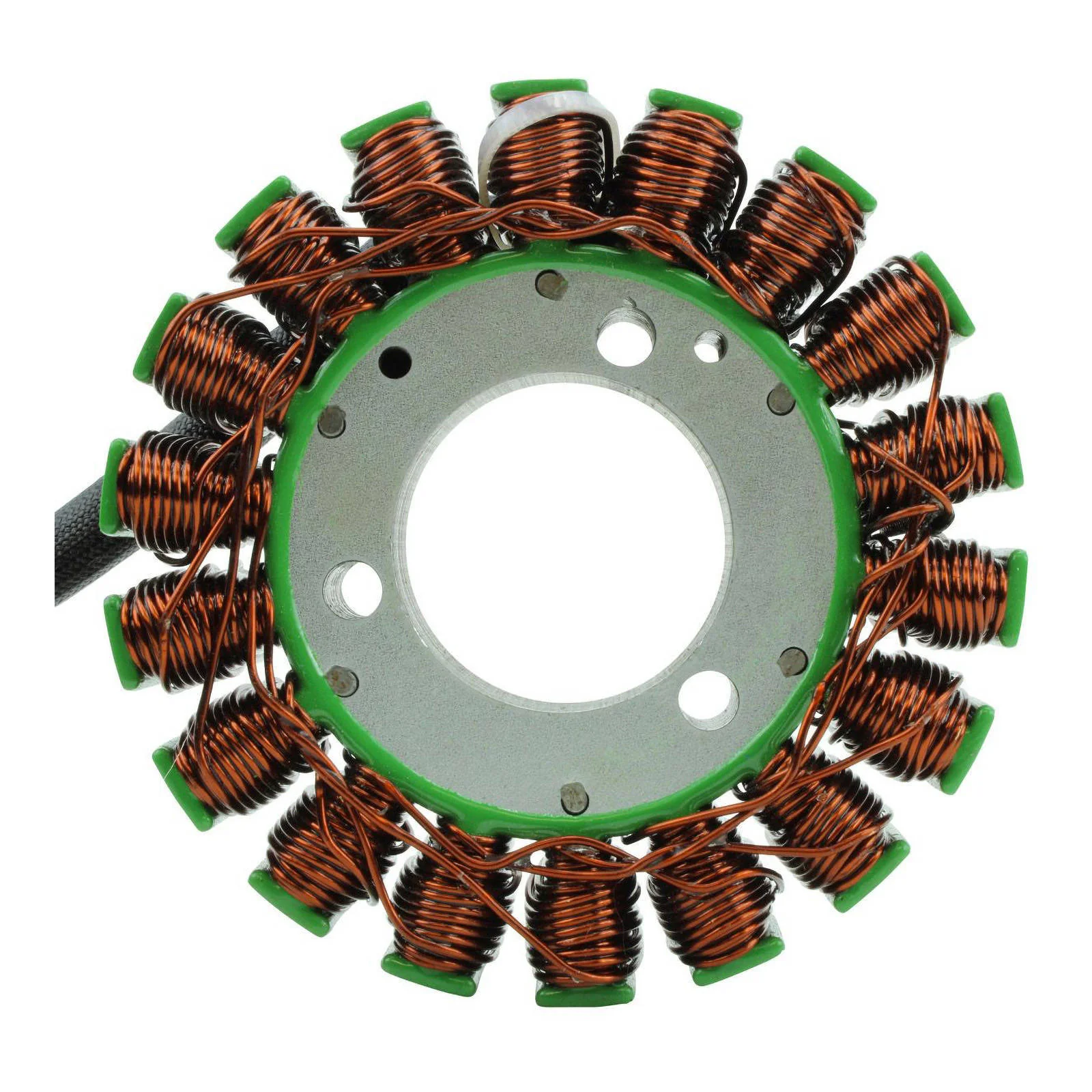

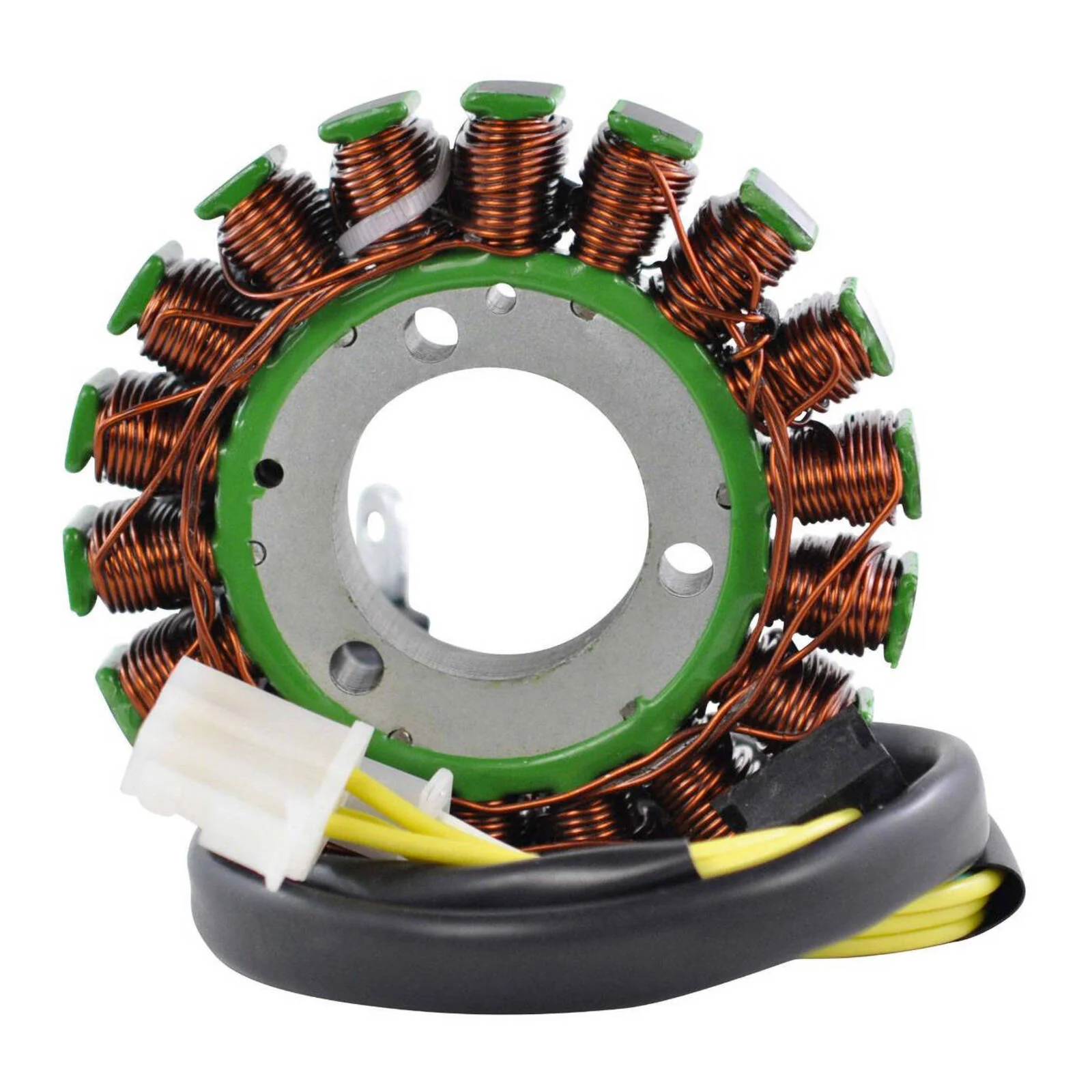

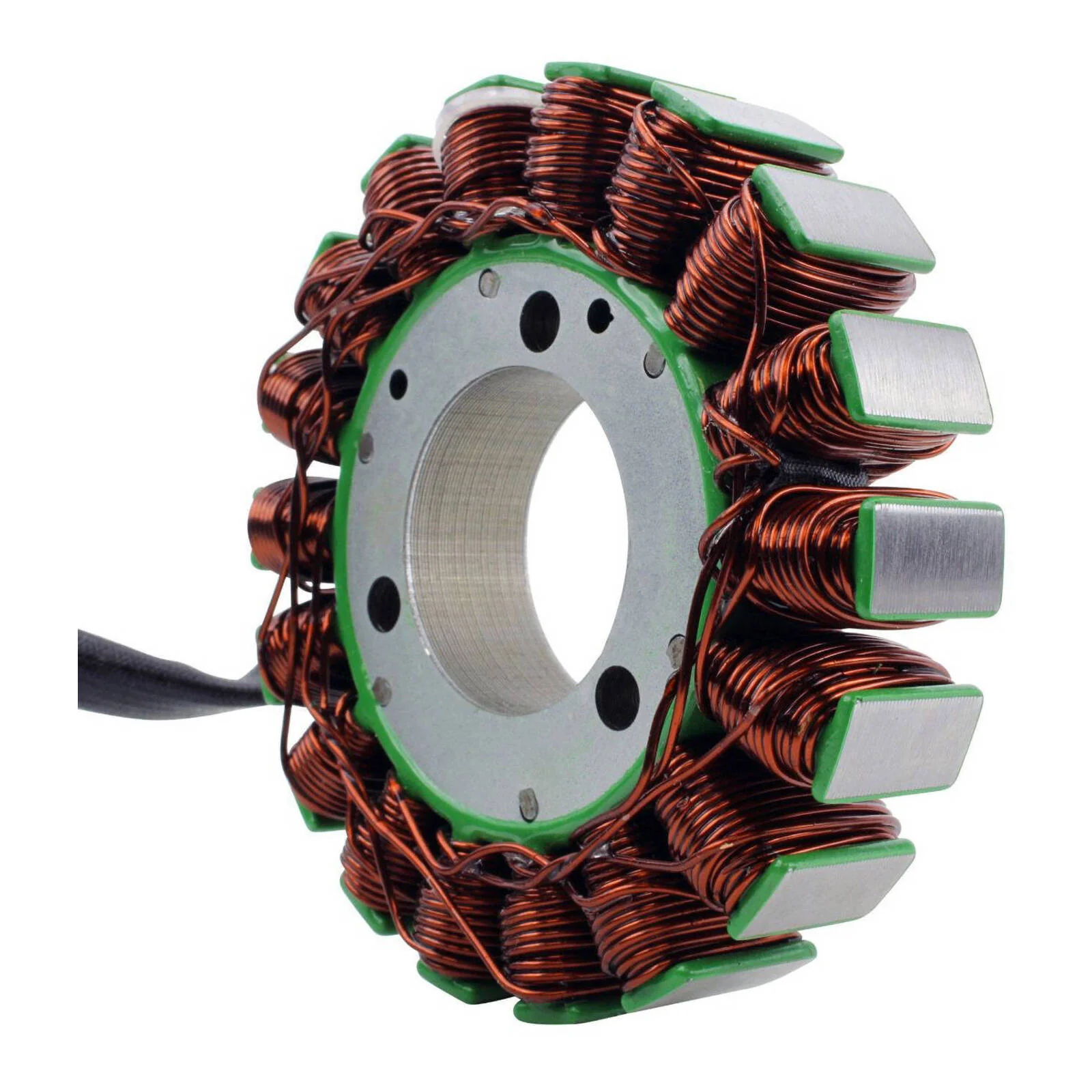

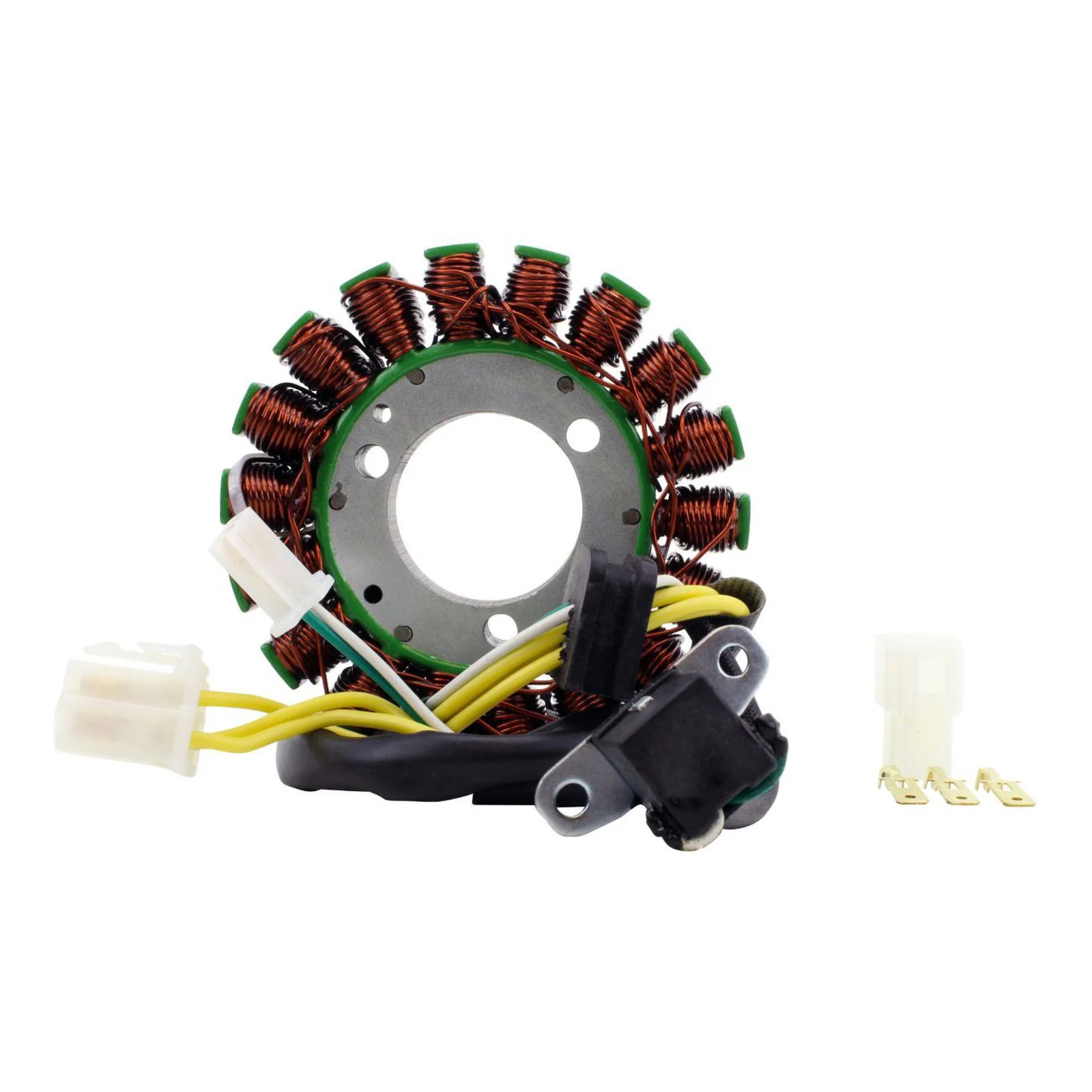

Generator Stator - Suzuki SV650 '99-'02 (RM01569)
Plug-and-play replacement generator stator from RM Stator. See fitment guide for model details.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.

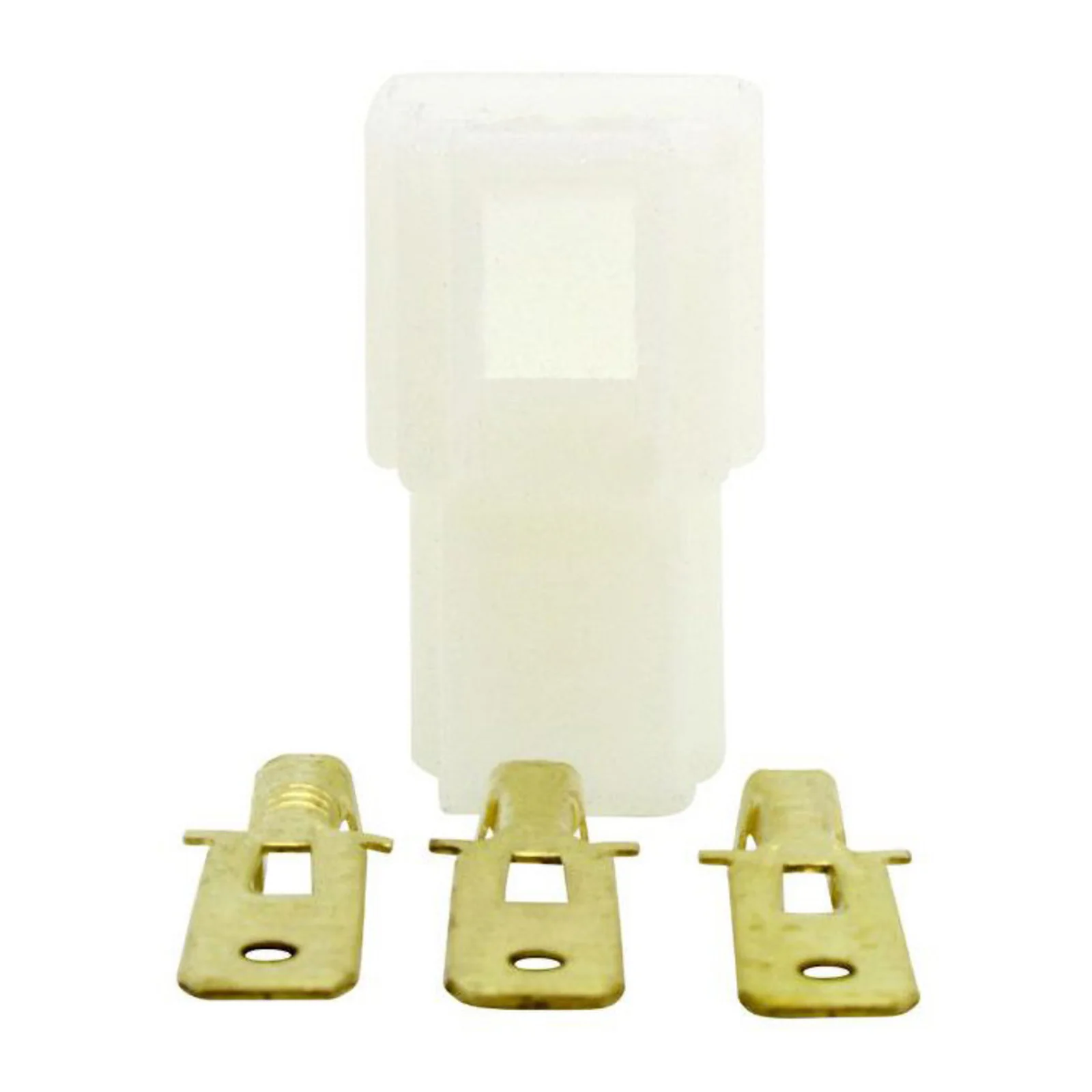

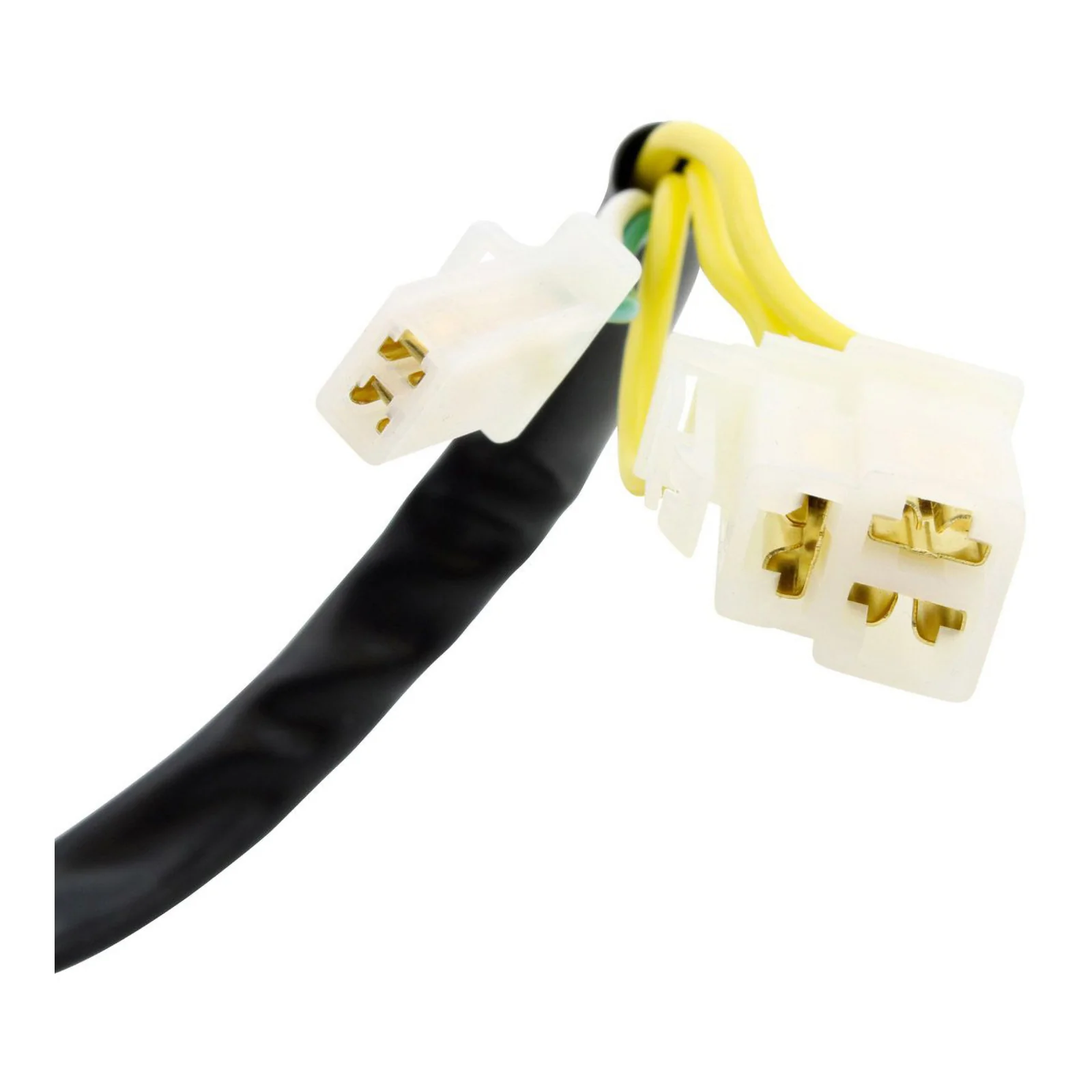

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Dimensions:
- Interior diameter: 38mm
- Exterior diameter: 105mm
- Thickness: 19mm
- Length of wires stator to grommet: 120mm
- Length of wires grommet to plug: 650mm
- Length of pickup coil's wire to grommet: 60mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Wire to wire resistance:
- Alternator: Yellow to Yellow = 0.7 ohms +-20%
- Pickup: Green to White = 195 ohms +/- 20%
